Normal ECG Intervals: PR, QRS, QT, and QTc

Meta description: Learn the normal ECG intervals for PR, QRS, QT, and QTc, how to measure them correctly, and why abnormal intervals matter in real clinical practice.

Quick Answer

The normal PR interval is usually 120 to 200 milliseconds, the normal QRS duration is usually about 70 to 100 milliseconds and generally less than 120 milliseconds, and the QT interval must always be interpreted in relation to heart rate, which is why clinicians use QTc. In adults, QTc is commonly considered prolonged if it is greater than about 440 ms in men or 460 ms in women. These intervals matter because they help you recognize conduction delay, ventricular conduction abnormalities, pre-excitation, drug effects, electrolyte disturbance, and arrhythmia risk.

Introduction

ECG interpretation becomes much easier when you stop seeing the tracing as a confusing set of spikes and start treating it as a series of measurable events. Some of the most important measurements on any ECG are the intervals: the PR interval, the QRS duration, the QT interval, and the corrected QT or QTc. These values are not just exam facts. They are part of real clinical decision-making in emergency medicine, internal medicine, cardiology, and critical care.

For medical students, ECG intervals are often first learned as numbers to memorize. For junior doctors, the challenge is usually different: you may remember the numbers, but you need to understand what they mean, how to measure them correctly, and when an abnormal interval should make you worry. This article is designed to bridge that gap.

By the end of this guide, you should be able to answer five practical questions: what each interval represents, what the normal range is, how to measure it, what common abnormalities mean, and which mistakes beginners should avoid.

Why ECG Intervals Matter

An electrocardiogram records the electrical activity of the heart. That electrical activity is not random. It follows a sequence: atrial depolarization, conduction through the AV node, ventricular depolarization, and ventricular repolarization. The intervals on the ECG help you measure how long those steps take.

If one interval is too short, too long, or unusually wide, it may point to a clinically important problem. A prolonged PR interval suggests delayed AV conduction. A broad QRS suggests abnormal ventricular conduction or a ventricular origin. A prolonged QTc raises concern for malignant arrhythmia risk. These are not small details; they can directly affect diagnosis and patient safety.

A Simple Framework Before You Start Measuring

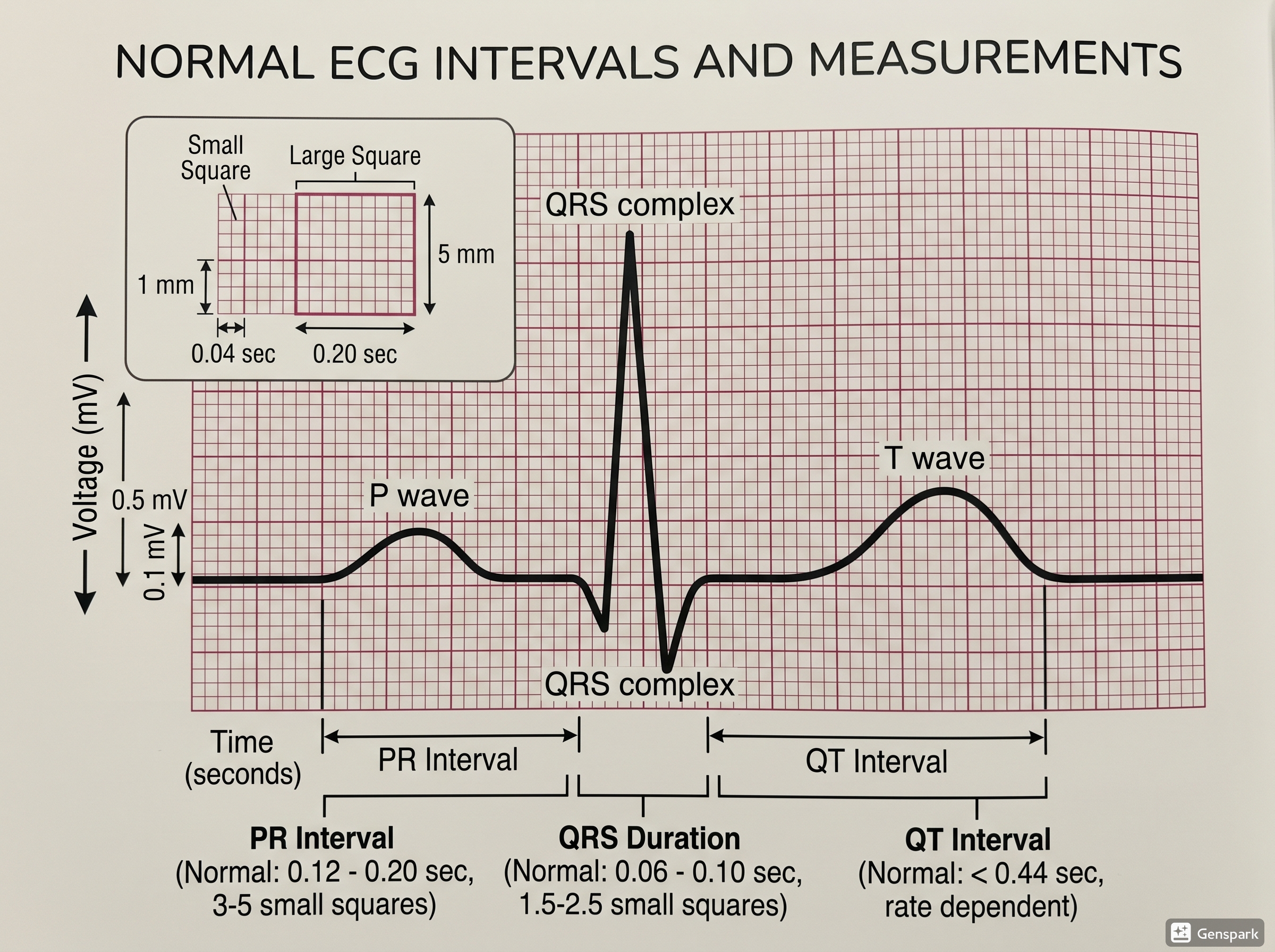

Before measuring any interval, first confirm the paper speed and calibration. Standard ECG settings are usually 25 mm per second and 10 mm per millivolt.

• 1 small square = 0.04 seconds
• 1 large square = 0.20 seconds
• 5 large squares = 1 second

If the paper speed is different, your interval measurements will be wrong. This step seems basic, but it prevents a surprising number of interpretation errors.

The PR Interval

The PR interval is measured from the beginning of the P wave to the beginning of the QRS complex. It reflects conduction from the atria through the AV node and into the ventricles. In practical terms, it tells you how long the impulse takes to get from atrial activation to ventricular activation.

Normal PR interval

A normal PR interval is usually 120 to 200 milliseconds, which is the same as 0.12 to 0.20 seconds or about 3 to 5 small squares on standard ECG paper. Some references allow a slightly broader upper normal limit in certain contexts, but 120 to 200 ms is the standard range most learners should memorize first.

How to measure the PR interval

Pick a lead where the P wave onset and QRS onset are clearly visible, often lead II. Count from the first deflection of the P wave to the first deflection of the QRS complex. If the rhythm is regular, measure a representative beat. If the rhythm is irregular, compare several beats.

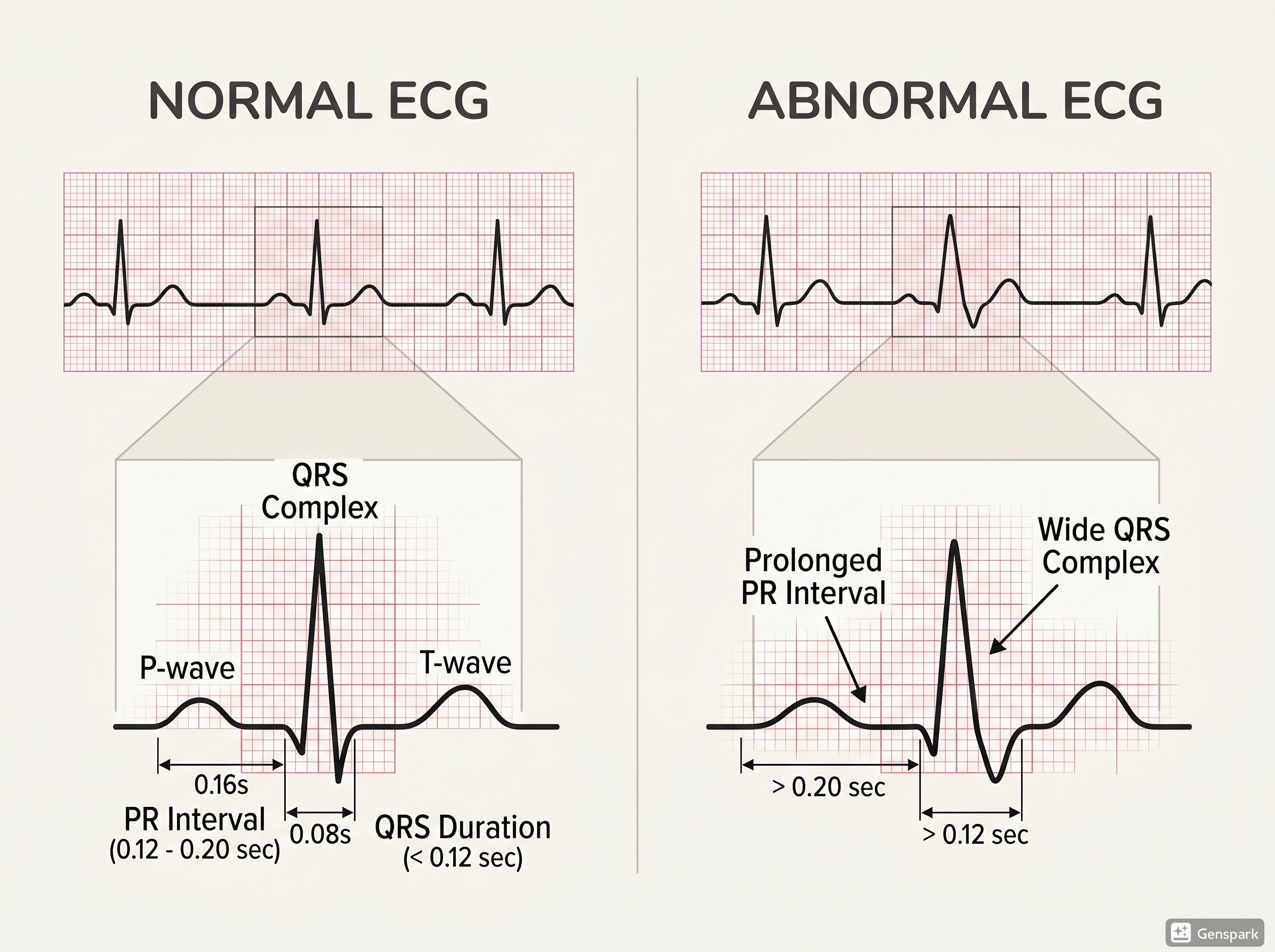

What a prolonged PR interval means

A PR interval longer than 200 ms suggests delayed AV conduction and is classically called first-degree AV block. On its own, this may be benign, but it can also be a clue to conduction disease, medication effect, or structural cardiac disease depending on the patient.

What a short PR interval means

A PR interval shorter than 120 ms raises the possibility of pre-excitation or a junctional rhythm. It should not be interpreted in isolation; you must look at the rest of the ECG, especially the QRS morphology.

The QRS Duration

The QRS complex represents ventricular depolarization. In simple terms, it reflects how quickly the ventricles are activated.

Normal QRS duration

A normal QRS duration is usually around 70 to 100 milliseconds. In everyday clinical teaching, many clinicians use less than 120 milliseconds as the important practical cutoff for a narrow versus broad QRS, because once the QRS reaches or exceeds 120 ms, abnormal ventricular conduction becomes more likely.

How to measure the QRS

Measure from the first deflection of the QRS complex to the point where the last deflection returns to baseline. The lead with the clearest start and end should be used, and if there is variation across leads, use the widest representative complex.

Why QRS width matters

A narrow QRS usually means ventricular activation is occurring through the normal His-Purkinje system. A broad QRS suggests abnormal conduction through the ventricles or a ventricular origin. Common causes include bundle branch block, ventricular rhythm, pacing, hyperkalemia, sodium-channel blockade, and pre-excitation.

A useful beginner rule

If the QRS is narrow, think supraventricular origin unless proven otherwise. If the QRS is wide, slow down and consider whether the rhythm could be ventricular or whether there is aberrant conduction.

The QT Interval

The QT interval is measured from the beginning of the QRS complex to the end of the T wave. It represents the total time for ventricular depolarization and repolarization. In practical terms, it covers the electrical activity of the ventricles from activation through recovery.

Why the QT interval is tricky

Unlike the PR interval and QRS duration, the QT interval changes with heart rate. A faster heart rate shortens the QT, and a slower heart rate lengthens it. That is why a raw QT value cannot be interpreted properly without considering the heart rate.

How to measure the QT interval

The QT interval is usually measured in lead II or in V5 or V6, but the lead with the longest clearly measurable QT should be used. Measure from the start of the QRS to the end of the T wave. If the end of the T wave is difficult to identify, use the point where the terminal limb of the T wave returns to the isoelectric line. If several beats are available, measure more than one and use the maximum representative interval.

A simple visual rule

A common bedside rule of thumb is that a normal QT is usually less than half the preceding RR interval. This is not a substitute for QTc calculation, but it is a useful quick check.

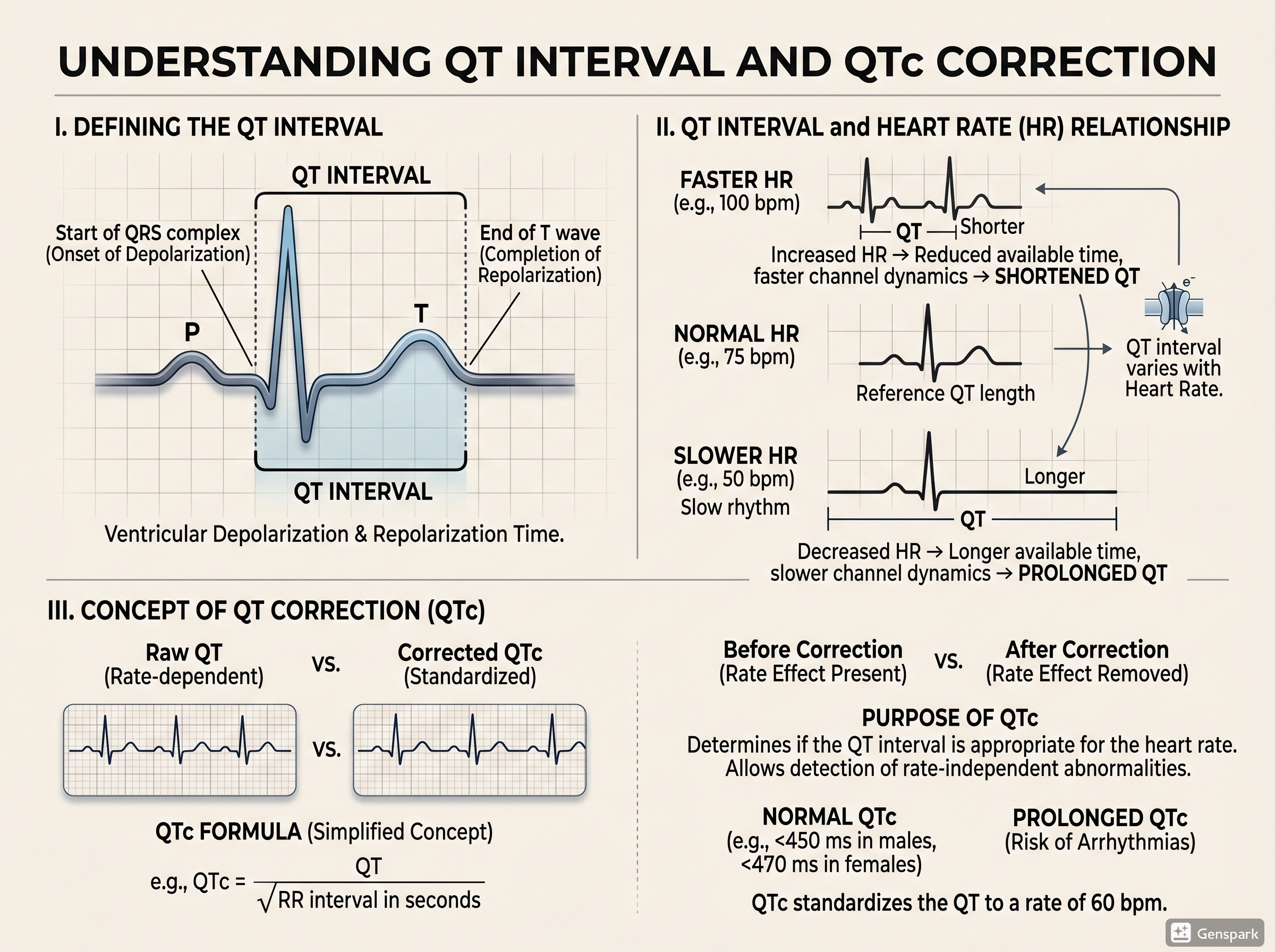

QTc: Why We Correct the QT Interval

Because QT changes with heart rate, clinicians use the corrected QT interval or QTc. The QTc is an estimate of what the QT would be at a standard heart rate. This makes it much more clinically useful, especially when comparing ECGs across different heart rates.

Practical normal QTc thresholds

For adults, QTc is commonly considered prolonged if it is greater than about 440 ms in men or greater than about 460 ms in women. A QTc above 500 ms is especially concerning because it is associated with increased risk of torsades de pointes. Very short QTc values are also abnormal and can be clinically relevant, though they are discussed less often in basic training.

Why QTc matters clinically

QTc prolongation may occur with medications, electrolyte abnormalities, congenital channelopathies, ischemia, structural heart disease, or systemic illness. In practice, it matters because it helps identify patients at risk of dangerous ventricular arrhythmias.

Normal Interval Summary Table in Words

• PR interval: 120 to 200 ms
• QRS duration: usually 70 to 100 ms; practical upper limit less than 120 ms
• QT interval: depends on heart rate, so measure with caution
• QTc: commonly prolonged if greater than 440 ms in men or 460 ms in women

How to Present ECG Intervals in a Clinical Readout

When you present an ECG, avoid listing numbers without interpretation. A useful style is concise and structured. For example: “Sinus rhythm, PR interval normal, QRS narrow, QTc within normal limits.” If one interval is abnormal, say so clearly and link it to the likely meaning: “Sinus rhythm with prolonged PR interval and narrow QRS, consistent with first-degree AV block.”

This kind of language is safer and more clinically useful than vague wording such as “slightly long interval” or “borderline QRS.”

Common Beginner Mistakes

One common mistake is measuring the wrong part of the tracing. For example, some learners measure the PR segment instead of the PR interval, or stop the QT too early before the true end of the T wave. Another mistake is forgetting to confirm paper speed.

A second common problem is treating all interval cutoffs as absolute without considering context. Real ECG interpretation still depends on rhythm, morphology, symptoms, medications, and comparison with prior tracings. A mildly prolonged QTc in one patient may be far more concerning than the same number in another, depending on the clinical setting.

Finally, many learners focus only on memorizing numbers. The better approach is to memorize the numbers and the meaning. If you know what each interval represents physiologically, the normal ranges are much easier to remember.

A Practical Way to Memorize the Intervals

A simple way to remember the main intervals is this: PR is about 3 to 5 small squares, QRS is usually under 3 small squares, and QT must always be judged with heart rate in mind. If you pair the number with the physiology, recall becomes much easier.

• PR = atria to ventricles through the AV node
• QRS = ventricular depolarization width
• QT = total ventricular electrical activity
• QTc = QT adjusted for heart rate

FAQ

What is the normal PR interval on ECG?

The normal PR interval is usually 120 to 200 milliseconds, or 0.12 to 0.20 seconds.

What is a normal QRS duration?

A normal QRS duration is usually about 70 to 100 milliseconds, with less than 120 milliseconds used as the practical upper limit for a narrow QRS.

What is the normal QTc?

QTc is commonly considered prolonged if it is greater than about 440 ms in men or 460 ms in women.

Why do we use QTc instead of QT alone?

We use QTc because the QT interval changes with heart rate. QTc adjusts for that and gives a more clinically useful value.

What does a prolonged PR interval suggest?

A prolonged PR interval suggests delayed AV conduction and is classically associated with first-degree AV block.

What does a wide QRS suggest?

A wide QRS suggests abnormal ventricular conduction or a ventricular origin, depending on the full ECG pattern and clinical context.

Key Takeaways

Normal ECG intervals are among the most useful measurements on any 12-lead tracing. The PR interval tells you about AV conduction, the QRS tells you about ventricular depolarization width, and the QT interval covers total ventricular electrical activity. Because QT changes with heart rate, QTc is the clinically important value in most settings.

For medical students and junior doctors, the most reliable habit is to measure intervals systematically and interpret them in context. If you learn what each interval means and not just the number attached to it, ECG interpretation becomes safer, faster, and much more clinically meaningful.

References

1. American Heart Association. Electrocardiogram (EKG or ECG).
2. LITFL. PR Interval.
3. LITFL. QRS Interval.
4. LITFL. QT Interval.
5. ECG Waves. Reference Values for Adult ECG.
